| 원래 장소: | Wenzhou, 중국 |
|---|---|
| 브랜드 이름: | CHANGJIANG |
| 인증: | CE ISO9001 |
| 모델 번호: | KJ-20 |
| 최소 주문 수량: | 1 세트 |
| 가격: | Negotiable |
| 포장 세부 사항: | 표준 수출 패키지 |
| 지불 조건: | 미리 30% T/T 지불, 선적의 앞에 70% T/T 지불 |
| 하이 라이트: | 파열 힘 검사자,종이 테스트 장비 |
||
|---|---|---|---|

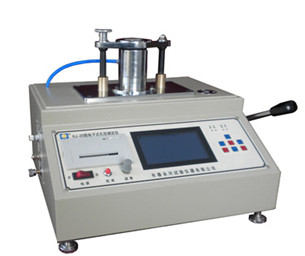

Paper Testing Instruments for Filter Media Pore Size Testing , Air Pressure 0 - 20kpa
Quick Detail:
| Type | Filter Paper Tester |
| Applications | for oil filter, air filter, fuel filter paper testing |
| Package | Standard Export Plywood cases |
| Certificate | CE ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 20 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Description:
1. It executes ISO2942 and ISO4003 standards. One side of filter media is infiltrated by test liquid and submerged according to the specified height.
2. The other side is micro-pressurized by dry air. When the air current passes through the filter layer and the pressure is larger than the other face, the bubble will overflow.
3. The first bubble is the maximum pore size of filter media, and the group of bubbles is general pore size. 4. The pore size of filter media can be calculated according to the micro-pressure value of bubbling.
Specifications:
| Air Pressure | 0-20kpa |
| Pressure Speed | 2-2.5kpa/min |
| Pressure Value Accuracy | ±1% |
| Pressure Resolution | 0.01kPa |
| Azimuth Resolution | 0.01μm |
| The specimen thickness | 0.10-3.5mm |
| Test Area | 10±0.2cm² |
| The clamp ring diameter | φ35.7±0.5mm |
| Gas storage bottle volume | 2.5L |
| Power | 220V AC |
Feature
This tester is designed and manufactured according to industrial standard QB1059 to test the thickness of corrugation filter paper. The sample is placed between two parallel planes. The value measured under specified area and pressure is the thickness of corrugation filter paper
